1PP+4PE
3923210000
Size | 1.7*2.35*5.8m(20" container)2.1*2.4*11.8m(40" container) |
Fabric | 3-6 layers,out layers is pp woven fabric with lamination,inner layer is PE film from 125microns to 220 microns |
Capacity | 14000 liters to 24000 liters |
Inlet&Outlet | 3" ball & butterfly pp valve |
Accessories | Steel pipe 5pcs, Cardboard baffle 1pc, Alarm Mark 1pc, Corrugated paper 30m, Adhesive tape 1pc. |
Packing | 20" container can load 83 sets,40" can load 180 sets |
Usage | Oil,water,wine,silica gel,molasses,juice,base oil,bitumer,syrup,Non-hazardous liquid |
Advantages | No clean and repair cost,Minimal disposal cost lighter than drums FDA approved,Seamless construction,Minimal residue on discharge food-grade,Chemical resistant cost efficient,Absorbent and styetchable material |

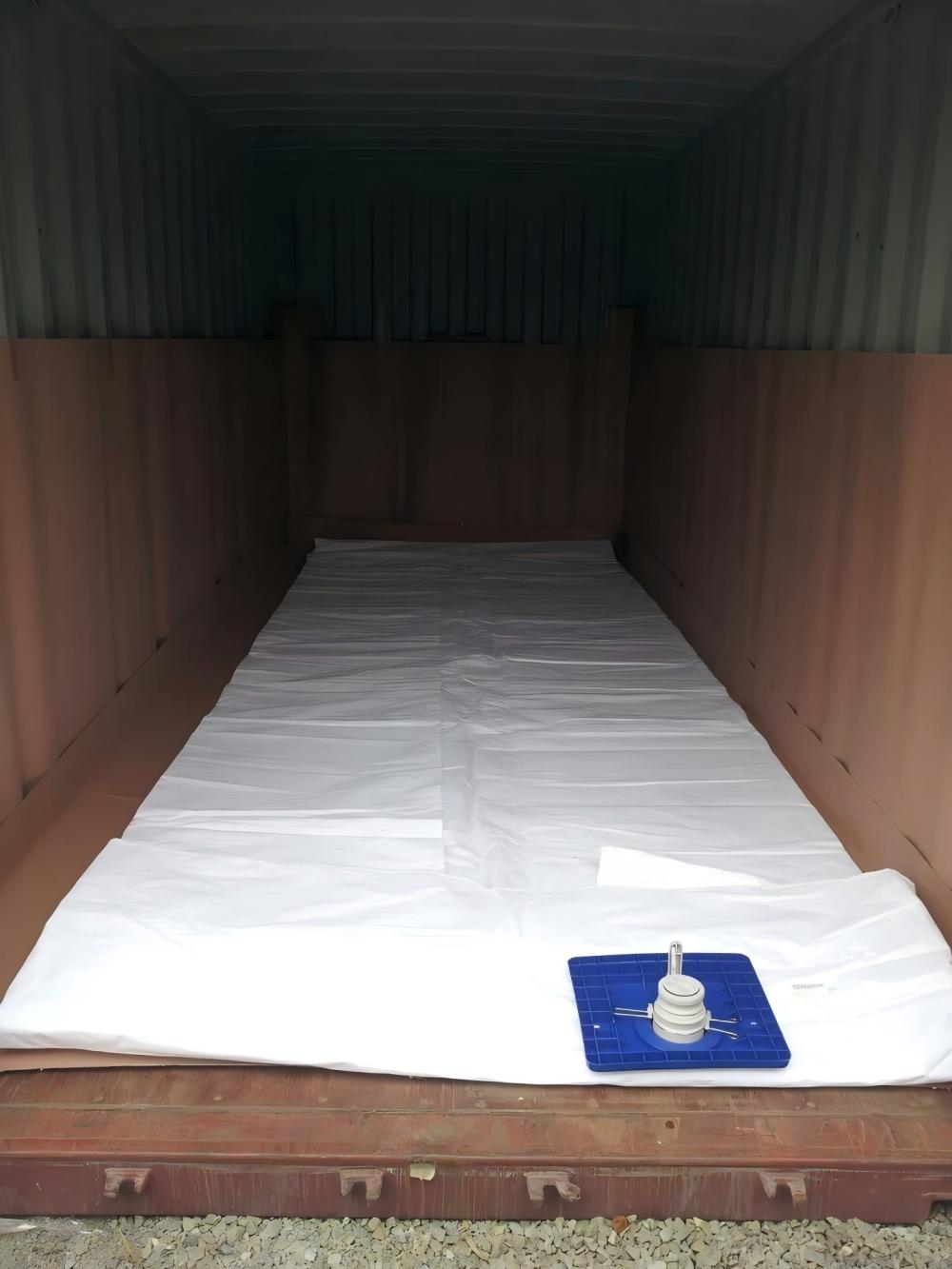

20ft container flexitank:
Plane size: 7.45*3.95m
Steel pipe: 5 pcs
PP fabric: 180gsm
PE thickness: 12.5 filaments
Weight: 45kg Including 1 or 2 3-inch valves for loading and unloading
Valve clamp: 1 pc (35*40cm to clamp the valve and prevent it from retracting)
Cardboard baffle: 1 pc
Alarm sign: 1 pc
Corrugated paper: 30m
Packing carton size: 103*51*40cm
Support paper tube: 8 pcs
Instruction manual: 1 sheet
Tape: 1 piece
